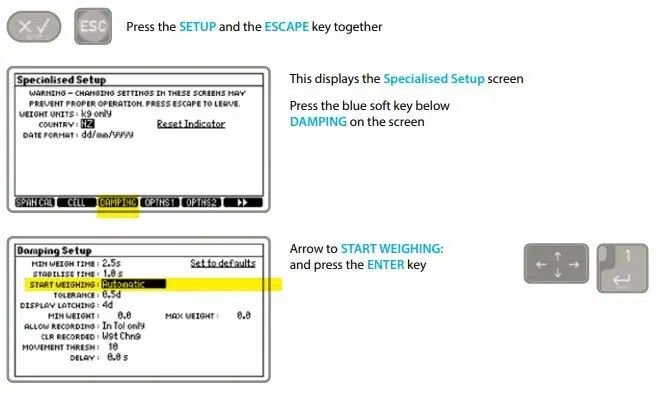

The primary buttons used during setup

To change an item you enter its screen by pressing the blue soft key below its title in the lower screen area Changing an items setting is either a keyed in entry or a selection from a list.

1) Selecting and changing a setting from a list of options:

Use the Arrow keys to highlight the entry on screen

Press the ENTER key to display the list of available options for the entry

Arrow to highlight the required option

Press the ENTER key to select the option and close the list

2) Select and change the setting with keypad input:

You still arrow to the entry you wish to change but then you key in the data using the keypad

Once keyed in press the ENTER key to accept your entry and move on.

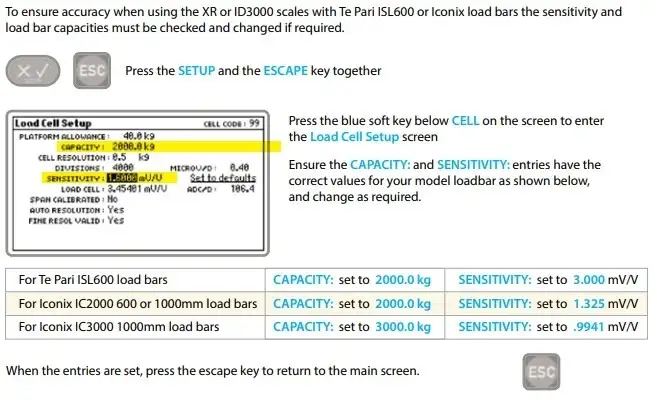

Before using your weigh scale please read the owner’s manual and completely charge up your weigh scale system.

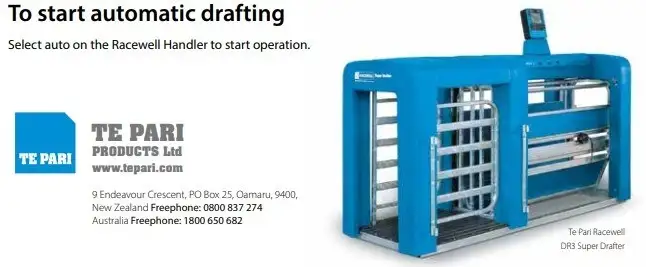

Connect the comms lead connection between your Tru-Test scale and the Racewell Super Handler.

For further support contact your local Tru-test area representative, visit the website at www.tru-test.com or call technical assistance on 0800 2632 787
