Quick setup guide

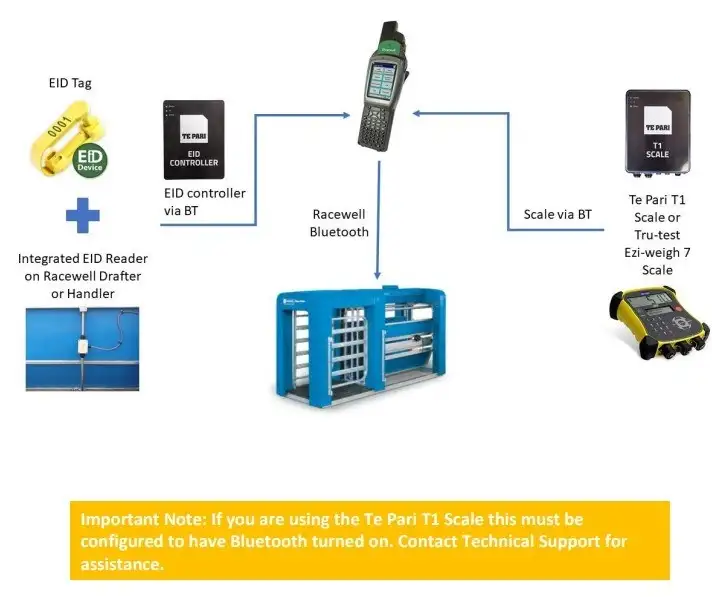

• Racewell Handler or Drafter (HD3, HD4, HD6 or DR3, DR5)

• Te Pari Loadbars (or for DR3/5 Drafter have integrated Loadcells)

• Te Pari ePanel Integrated EID Antenna

• Te Pari EID Controller with Bluetooth (902-00003-000)

• Bluetooth Module for Racewell Board (406-00009-000)

• Shearwell Stock Recorder Power cable 902-00017-000

• Te Pari T1 Scale* (not T1E) or Tru-test Ezy-weigh 7 Indicator

*Note: T1 needs Bluetooth mode set to Weight out only

1. Connect Scales

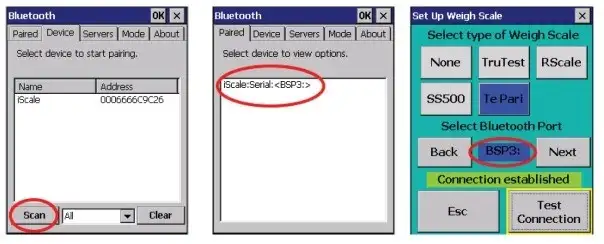

• On the stock recorder - open the Bluetooth Manager

• Scan to locate the signal from the Te Pari scales.

• Highlight iScale or T1 Scale and tap Pair.

• On the authentication on screen leave the passcode blank.

• The Services screen may open. Tap in the Serial Port check box.

• The Serial Profile screen will open.

• Leave Encryption disabled.

• Leave Mode as serial.

• Open the Port menu.

• Tap Next. Choose a BSP port and tap Done.

• In FarmWorks, go to Options > Weigher. Select Te Pari; use the buttons to select the correct BSP port.

• Test the connection.

• Escape to sheep or cattle procedures to start weighing

2. Connect Reader

• On the stock recorder - open the Bluetooth Manager

• Scan to locate the signal from the Te Pari EID Reader (ASR550).

• Highlight the ASR550 option and tap Pair.

• On the authentication on screen leave the passcode blank.

• The Services screen may open. Tap in the Serial Port check box.

• The Serial Profile screen will open.

• Leave Encryption disabled.

• Leave Mode as serial.

• Open the Port menu.

• Tap Next. Choose a BSP port and tap Done.

• In FarmWorks, go to Options > RF Reader. Select AUTO EID and Continuous read; use the buttons to select the correct BSP port.

• Test the connection.

• Escape to sheep or cattle procedures to start weighing

3. Connect the Racewell

• On the stock recorder - open the Bluetooth Manager

• Scan to locate the signal from the Racewell

• Highlight the Racewell option and tap Pair.

• On the authentication on screen leave the passcode blank.

• The Services screen may open. Tap in the Serial Port check box.

• The Serial Profile screen will open.

• Leave Encryption disabled.

• Leave Mode as serial.

• Open the Port menu.

• Tap Next. Choose a BSP port and tap Done.

• In FarmWorks, go to Options > Drafter. Select Racewell HD; use the buttons to select the correct BSP port.

• Test the connection.

• Escape to sheep or cattle procedures to start weighing

Then setting up the drafting directions depends on what you are doing on the day.

See page 42/43 of this guide StockRecorder UserManual (shearwell.co.uk)
